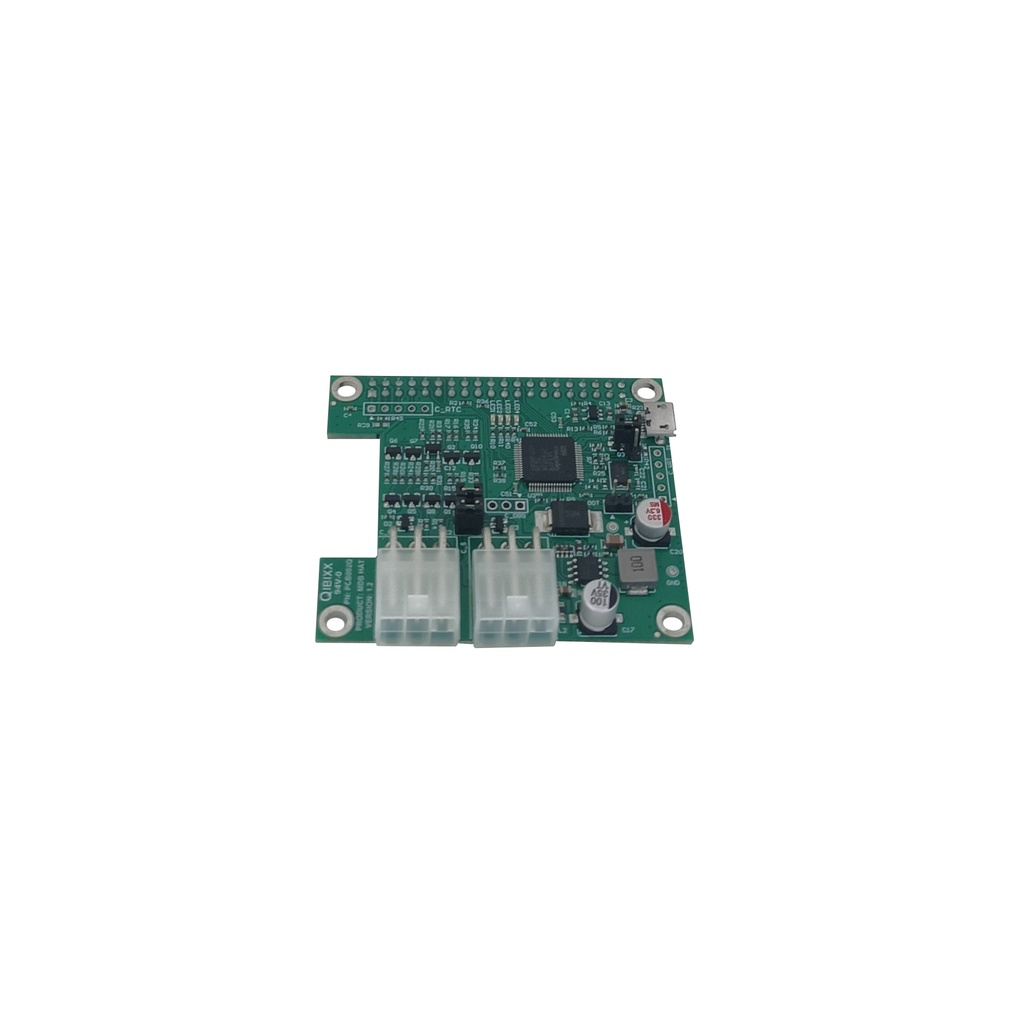

MDB Pi Hat USB

https://www.shop.qiba.pt/web/image/product.template/3926/image_1920?unique=79ddd85

HS Code: 8517.6200

120.00 € 120.0 EUR 120.00 €

Excludes Tax

120.00 €

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Overview:


The MDB Pi Hat is the first generation of Qibixx MDB to Serial Adapter with a Raspberry Pi Form Factor, and is now also connectable through USB, to free up the 40 pin header for other applications, if necessary. It can be used as a Master/Vending Machine Controller (VMC) or a Slave/Peripheral in the Multi Drop Bus (MDB). These features allow to implement a custom VMC, simulate cashless devices and virtually any application that needs to communicate with the MDB bus.

Features:

  • High level functional interface for cashless device implementations;
  • Independent VMC and Peripheral interfaces;
  • Easy jumper configuration to select power supply to the host (Raspberry Pi or other) and MDB operating mode;
  • Firmware update capable;
  • Universal MDB Interface in Pi Hat form factor;
  • USB Optional connection, configured with a Jumper;
  • USB compatible with most common Operating Systems (macOS, Linux, Windows);
  • Precise, time-stamped sniffing from MDB bus;
  • High-level, easy to implement serial interface protocol;
  • 2 years warranty;

Power Requirements:

  • 3.3V DC if supplied by the Host (Raspberry Pi or other);
  • 20 .. 42,5 V dc from the MDB Bus as defined in the MDB Protocol Specification;
