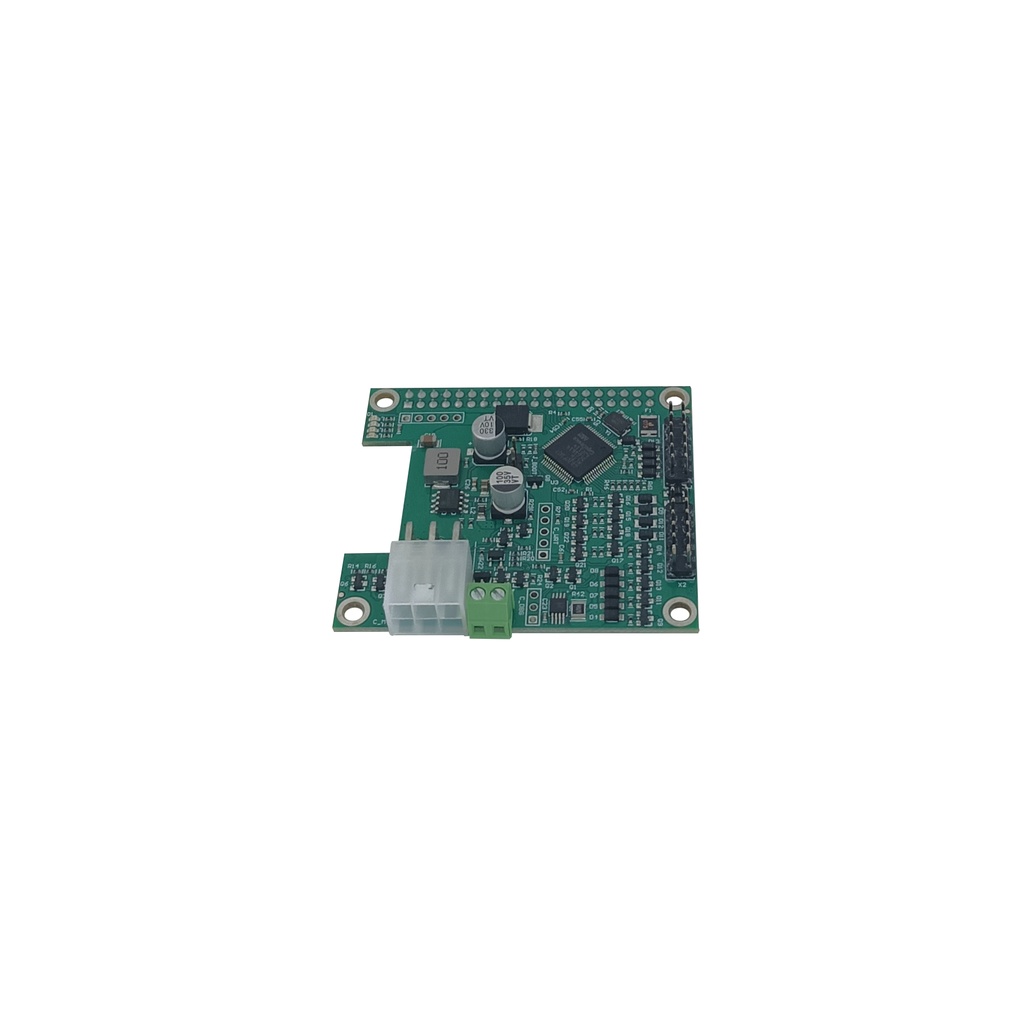

MDB Pi Hat VMC

https://www.shop.qiba.pt/web/image/product.template/3927/image_1920?unique=eb1bc89

HS Code: 8517.6200

130.00 € 130.0 EUR 130.00 €

Excludes Tax

130.00 €

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Description

The Qibixx MDB Pi Hat VMC is a reliable and universal MDB solution that, when combined with a Raspberry Pi can serve as a Vending Machine Controller.

This device Combines the MDB Controller which can be used to control the several peripherals as defined in the MDB Specification with the I/O Capability that can be used to control the vending Machine Mechanics and read Inputs from sensors or similar devices.

It is an all in one solution for the handling of both MDB Peripherals and the VMC of the operation, making it a cost effective product to design a fully customized vending machine.



Technical Specifications:

  • 1x Master MDB Port with sniffing capability;
  • 5x Low drive outputs, 1A capable;
  • 4x High drive outputs, 1A capable;
  • 4x Digital inputs (Active Low);
  • 3.3v TTL serial IO for extensions (Custom Applications);
  • 1x Master MDB Port;
  • Pi HAT GPIO Connector;

Power Requirements:

  • 3.3V (Automatically drawn from the Pi, regardless of how the Pi is being powered);
  • 20 … 42.5V DC from MDB Bus or Dedicated power supply;
  • 5Vdc when supplied from the Raspberry Pi;

Measurements/Mechanics:

  • 63mm x 56mm x 20mm;
  • 25 grams;
