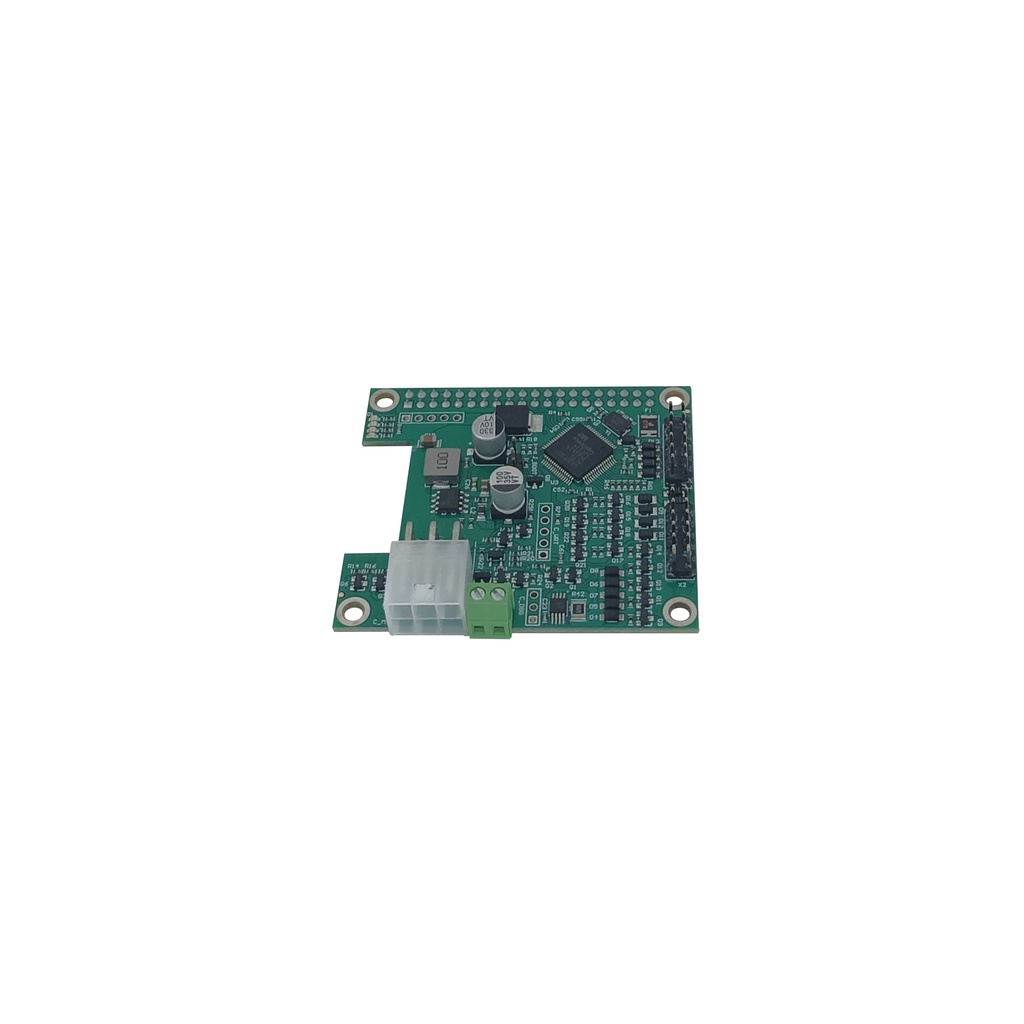

MDB Pi Hat VMC

The Qibixx MDB Pi Hat VMC is a reliable and universal MDB solution that, when combined with a Raspberry Pi can serve as a Vending Machine Controller.

This device combines the MDB Controller, which can be used to control several peripherals as defined in the MDB Specification, with the I/O Capability that can be used to control the vending Machine Mechanics and read Inputs from sensors or similar devices.

It is an all-in-one solution for the handling of both MDB Peripherals and the VMC of the operation, making it a cost-effective product to design a fully customized vending machine.

Technical Specifications:

• 1x Master MDB Port with sniffing capability;
• 5x Low drive outputs, 1A capable;
• 4x High drive outputs, 1A capable;
• 4x Digital inputs (Active Low);
• 3.3v TTL serial IO for extensions (Custom Applications);
• 1x Master MDB Port;
• Pi HAT GPIO Connector.

Power Requirements:

• 3.3V (Automatically drawn from the Pi, regardless of how the Pi is being powered);
• 20 … 42.5V DC from MDB Bus or Dedicated power supply;
• 5Vdc when supplied from the Raspberry Pi.

Measurements/Mechanics:

• 63mm x 56mm x 20mm;
• 25 grams.
